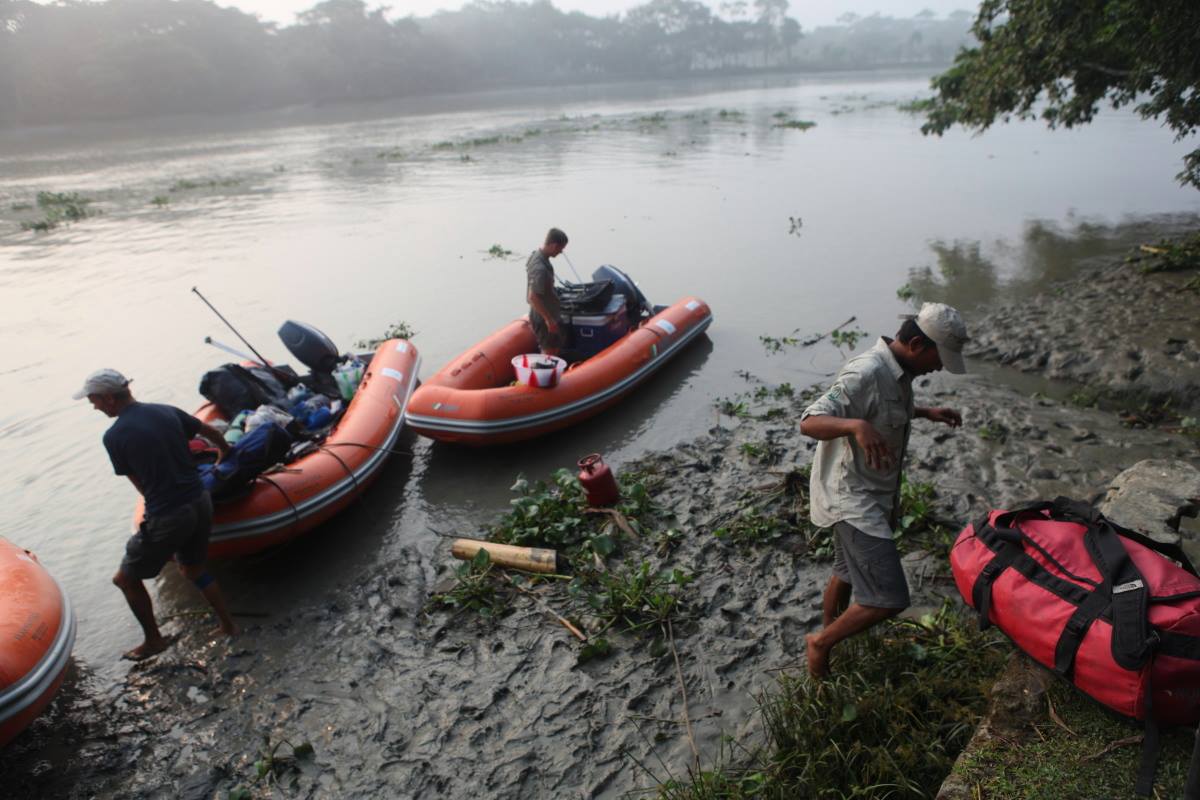

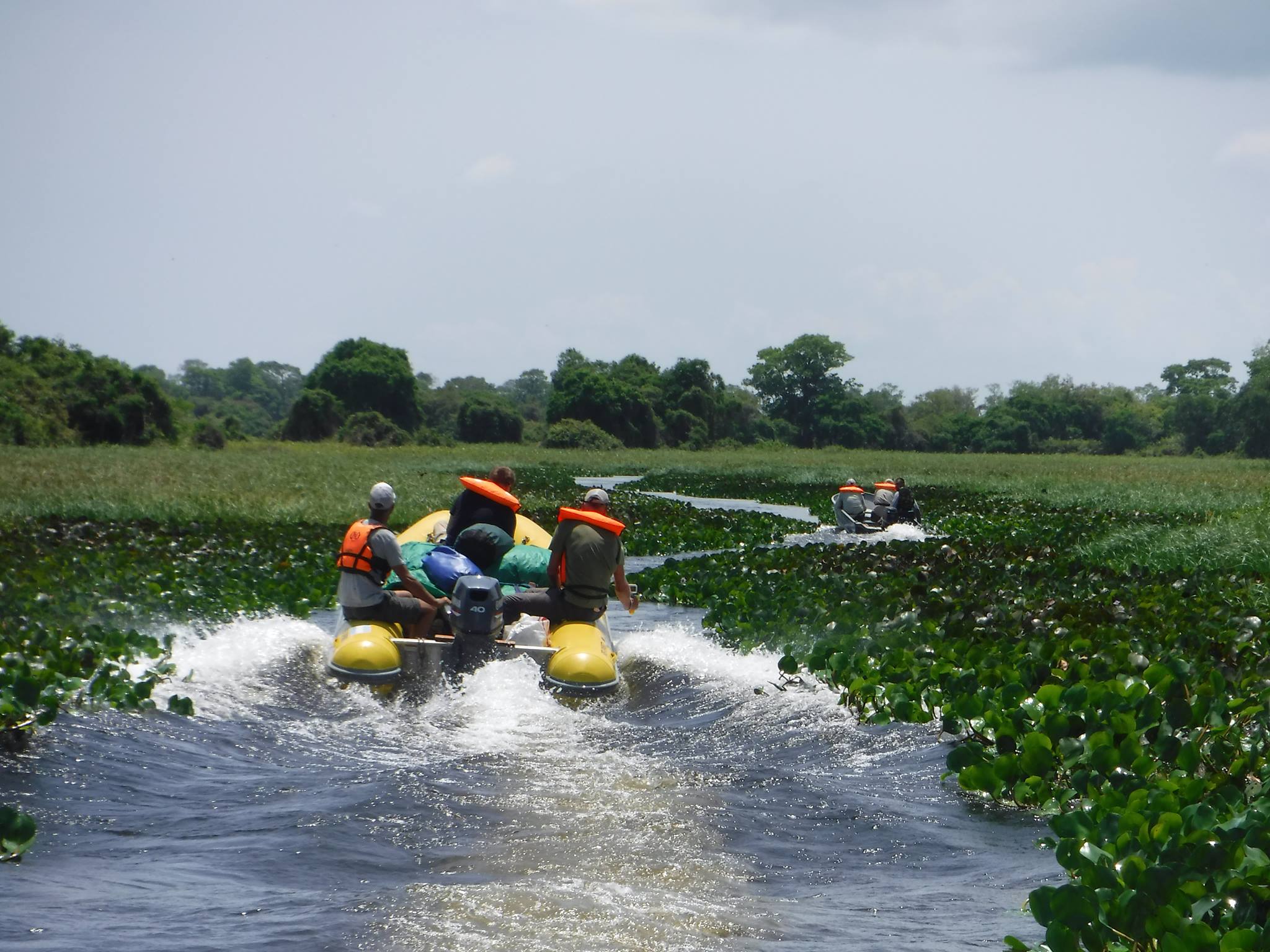

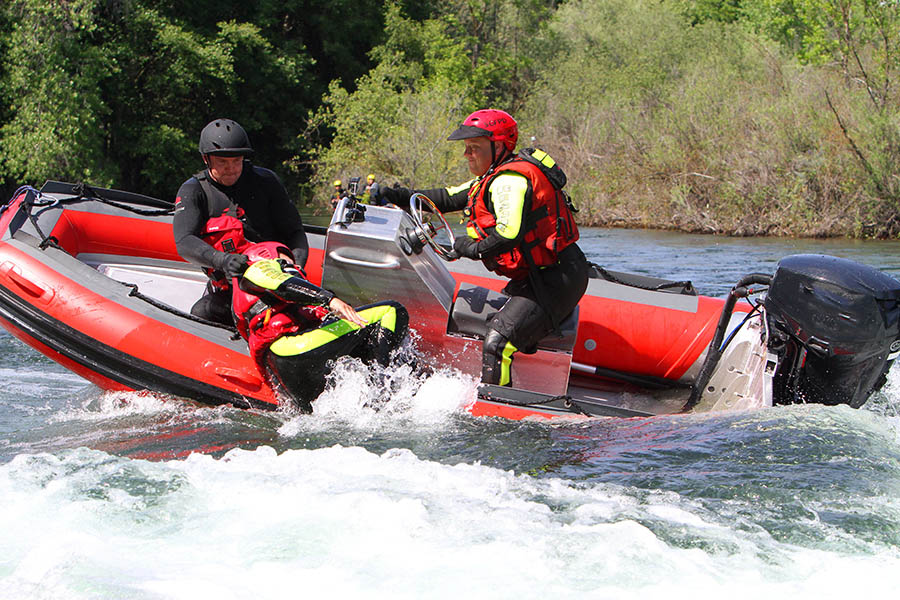

Built for special use on inland waters for professional organizations like State Emergency and other rescue services. Built tough to be able to survive shallow water with underwater obstacles, go over rapids and through swift running water, handle floods in urban as well as farm lands. At all times the design includes maintaining the safety of those on board. Used for commercial operations such as an oyster farm.

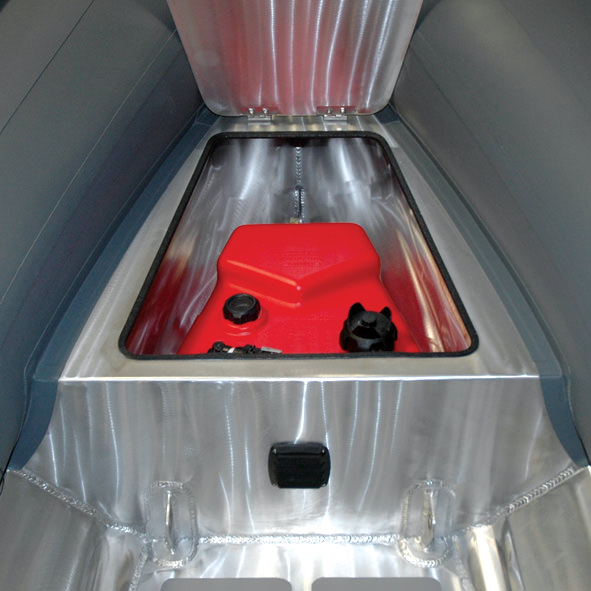

The AB Profile RIBs are built with military/commercial grade aluminium and CSM for the tubes to provide resistance to under water hazards . The bow locker is engineered to accommodate a fuel tank with lines below the deck. The hull is designed to provide stability and good manouvering ability on inland waters.
The AB Profile RIBs are designed to be quickly and easily deployed.

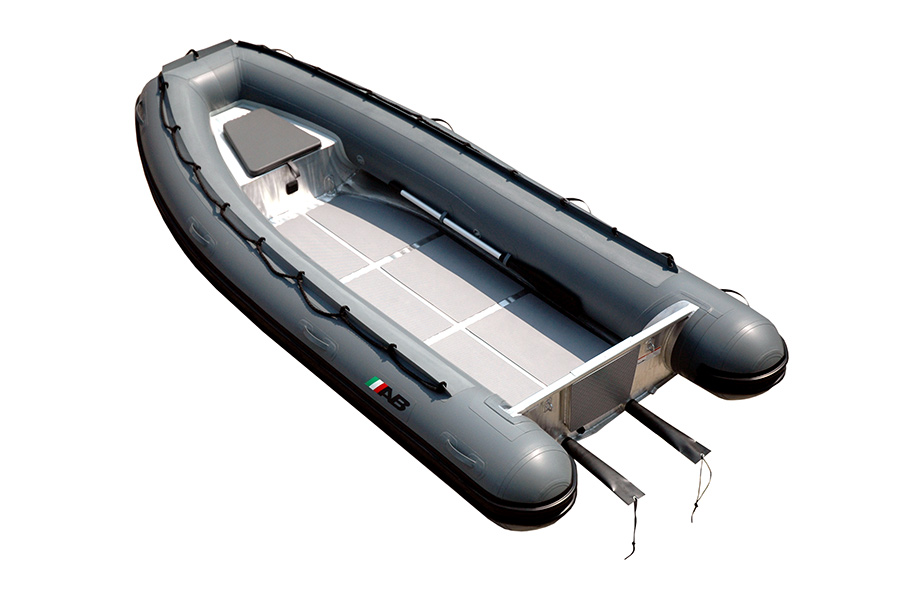

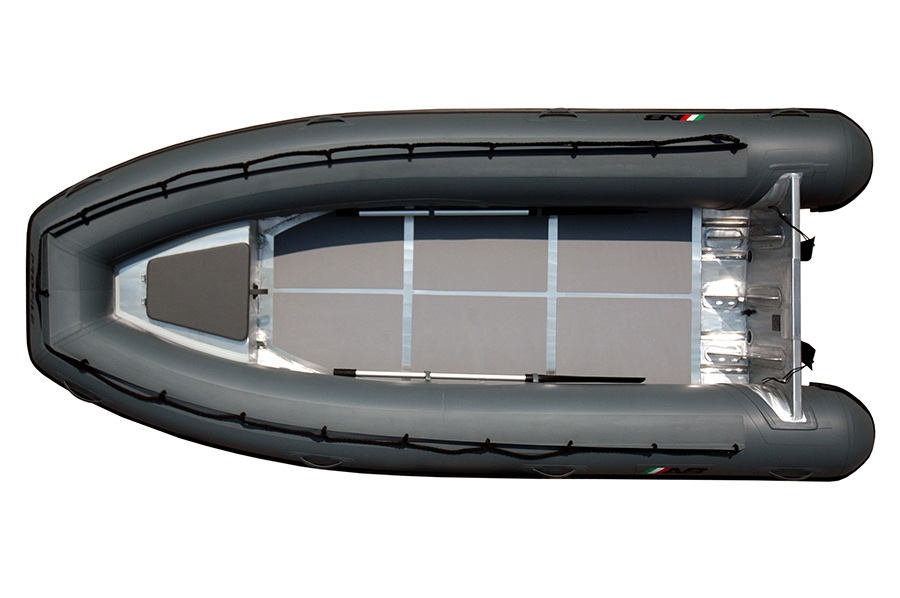

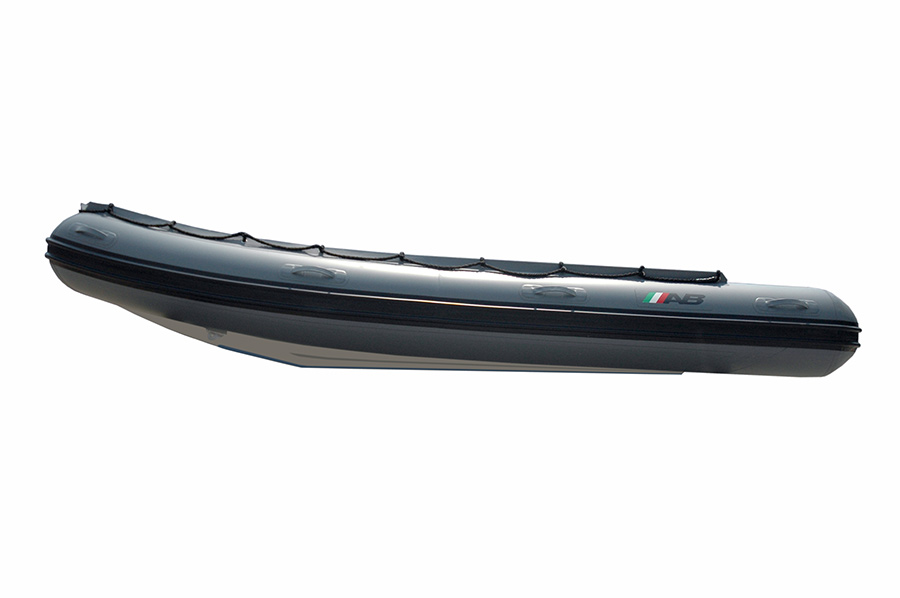

Specifications: AB PROFILE AS 14
|
Overall Length
|
4.27m
|
|
Overall Beam
|
1.96m
|
|
Inside Length
|
3.3m
|
|
Inside Beam
|
0.99m
|
|
Tube Diameter
|
48cm
|
|
Number of Chambers
|
4
|
|
Person Capacity
|
8
|
|
Weight
|
144 kgs
|
|
Recommended HP
|
40hp
|
|
Maximum HP
|
50hp
|
|
Shaft Length
|
20” / 50.8cm
|
Standard Equipment:
- Marine Grade Aluminium Hull
- Stringer System Welded Under Aluminium Deck
- Life Line Around Tube
- Non-Skid (CSM) Coated Fabric on tube’s Surface
- Pressure Relied Valves
- Drain Scuppers
- Heavy Duty Transom Knee
- Non-Skid Rubber Floor Panels
- Plastic External Transom Plate
- Aluminium Internal Transom Plate
- Aluminium Bow Eye
- 4 Aluminium Davit Lifting Points
- Aluminium Transom Tie Down & Towing Rings
- Aluminium Bow Tie Down & Towing Rings
- Deck Drain with Plug
- Heavy Duty 1670 Decitex Orca (CSM) Five Layer Coated Fabric
- Double Solid Rub Rails
- Push Push Plastic Non-Corrosive 2 Stage Inflation Valves
- 1 Front & 4 Side Orca (CSM) Fabric Handles on Tubes
- Paddles with Aluminium Shaft
- Paddle Holders
- Hand Pump
- Maintenance Kit
- Owner’s Manual
- 3 layer Reinforced Seams
- Rubber Protector on Full Length of Keel
Optional Equipment:
- Tube Chaps
- Boat Cover
- Chock Set
- Bow Step with Fold Down Stainless Steel Cleat
- Lateral Fold Down Stainless Steel Cleat
- Removable Rowing Seat
- Fiberglass Console with Forward Seat
- Fiberglass Console
- Customised Aluminium Consoles & Seats Upon Request
- One Person Jockey Seat
- Two Person Jockey Seat
- Stainless Steel Helm Unit
- Bow Locker/ Seat
- Aluminium Console
- Aluminium Lean On
- 6 Gal/ 22L Portable Fuel Tank Installed in Bow Locker
- Bench Seat with Storage
